Tire Construction Explained: Key Components of a Modern Truck Tire

Understanding tire structure, casing design, belts, beads, tread and radial construction

Understanding Tire Construction

A commercial truck tire is a system of engineered components that must work together under load, heat, inflation pressure and changing road conditions. Understanding how these components are arranged helps fleets, distributors and tire professionals evaluate durability, handling, tread life and overall operating efficiency.

This guide provides a practical overview of modern tire construction, from the tread and sidewall to the steel belts, carcass, inner liner and bead assembly.

Ultra Wide-Base Tire Construction

Wide-base tires are designed for applications where operating efficiency, load capability and maintenance considerations.Logistic fleets turn to wide-base tires to help lower operating expenses. From ease of maintenance to increased cargo capacity and decreased fuel consumption, these products are built to improve the efficiency of rigs that equip them.

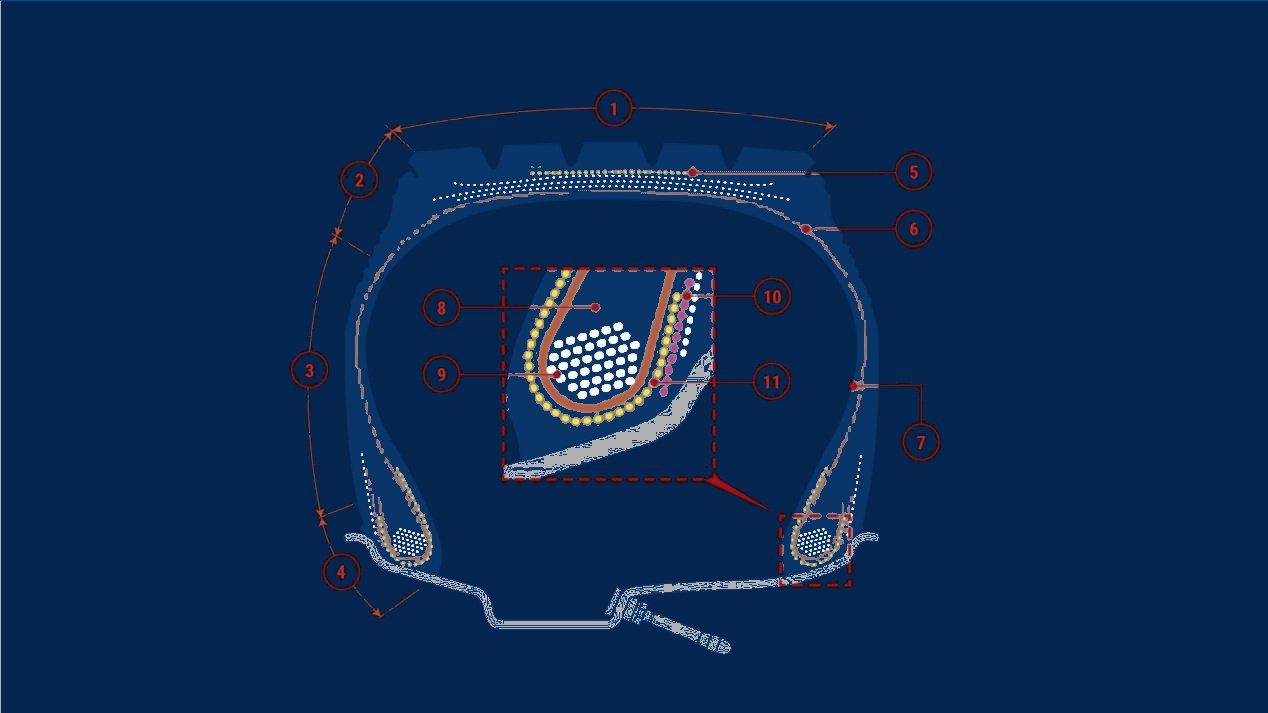

Five-Belt Package

A five-belt package (1) can help create a flatter carcass line and maintain the intended tire shape, contributing to a stable and efficient footprint.

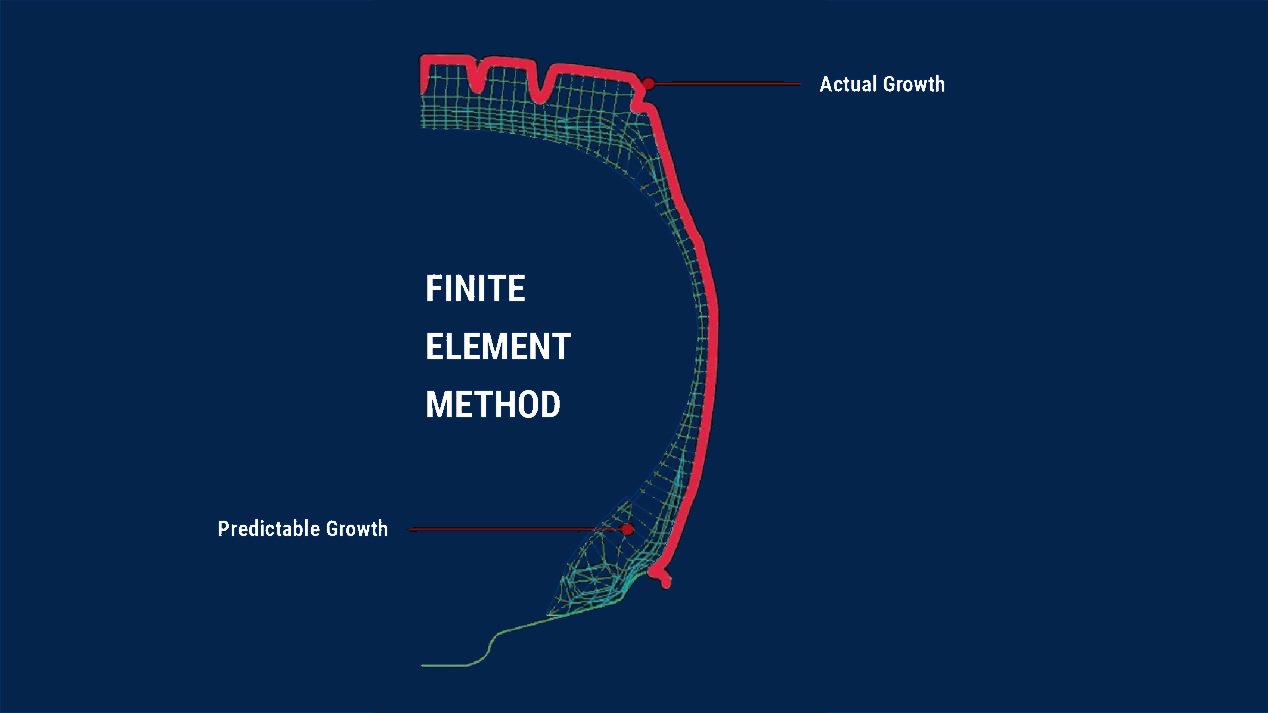

Advanced Profile

An optimized tire profile (2)  helps manage strain during normal operation and can contribute to durability and reduced casing fatigue.

Zero-Degree Belt

Zero-degree belts (3) provide even pressure across the contact patch, allowing for even weight distribution, which vastly increases tread life.

Oversized Hexagonal Bead

An oversized hexagonal bead(4) can distribute pressure around the wheel circumference, helping reduce localized strain in the bead area.

Shoulder

The shoulder  (2) connects the tread area with the sidewall. It helps protect the belt and carcass while also playing an important role in heat dissipation.

Sidewall

The sidewall (3) is the rubber coating that serves to protect the carcass, and is the section of the tire that deflects the most while driving.

Bead

The bead (4) anchors the tire to the wheel and provides the mechanical connection between the tire and rim.

Belt

The belt(5) is a reinforcement layer located beneath the tread. It increases stiffness in the tread area and helps maintain the shape of the contact patch.

Carcass

The carcass (6) is the load-bearing framework that forms the body of the tire. Composed of rubber-coated steel cords laid in a radial direction, it contains the inflation pressure that helps support the load and absorb impact.

Inner Liner

The inner liner (7) is a specialized rubber layer designed to resist air migration and help maintain inflation pressure.

Bead Filler

The bead filler (8) is a reinforcing rubber element, commonly with a triangular cross-section, that contributes to bead stiffness.

Bead Wire

Tire bead wire(9) is a continuous ring of steel wires that reinforces the bead and helps secure the tire to the rim.

Nylon and Steel Chafers

Tire chafer fabric and steel cords are wrapped around the bead section to reinforce it. It is conventionally composed of steel (11), however, the specification may sometimes call for the use of nylon (10)

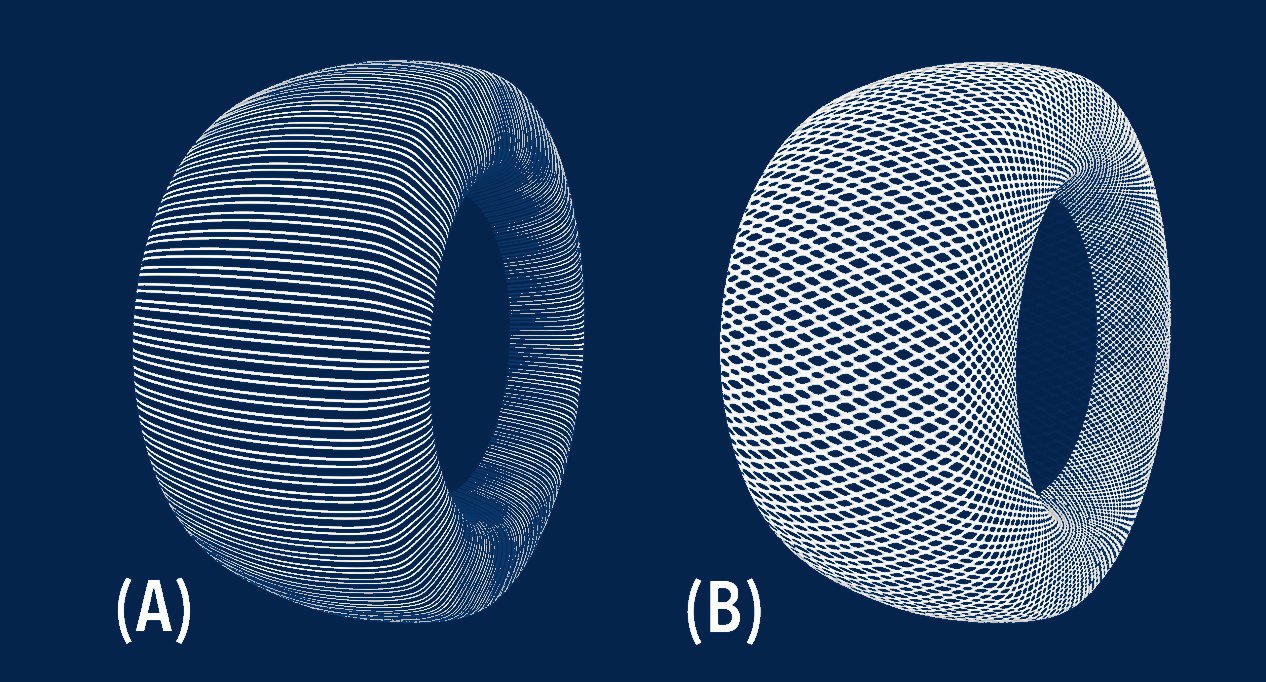

Radial and bias tire construction compared.

Radial vs. Bias Tire Construction

There are two distinctly different types of construction when it comes to the cords of a tire.

Radial Tires

The cords forming the carcass of radial tires (A) are arranged perpendicularly to the centerline of the tread, or in a radial direction from the center of the tire.. This construction is widely used in modern commercial truck applications.

Bias Tires

In a bias tire (B) , the carcass cords are arranged diagonally and cross one another. The cord angle is typically around 40 degrees from the centerline, depending on the construction.

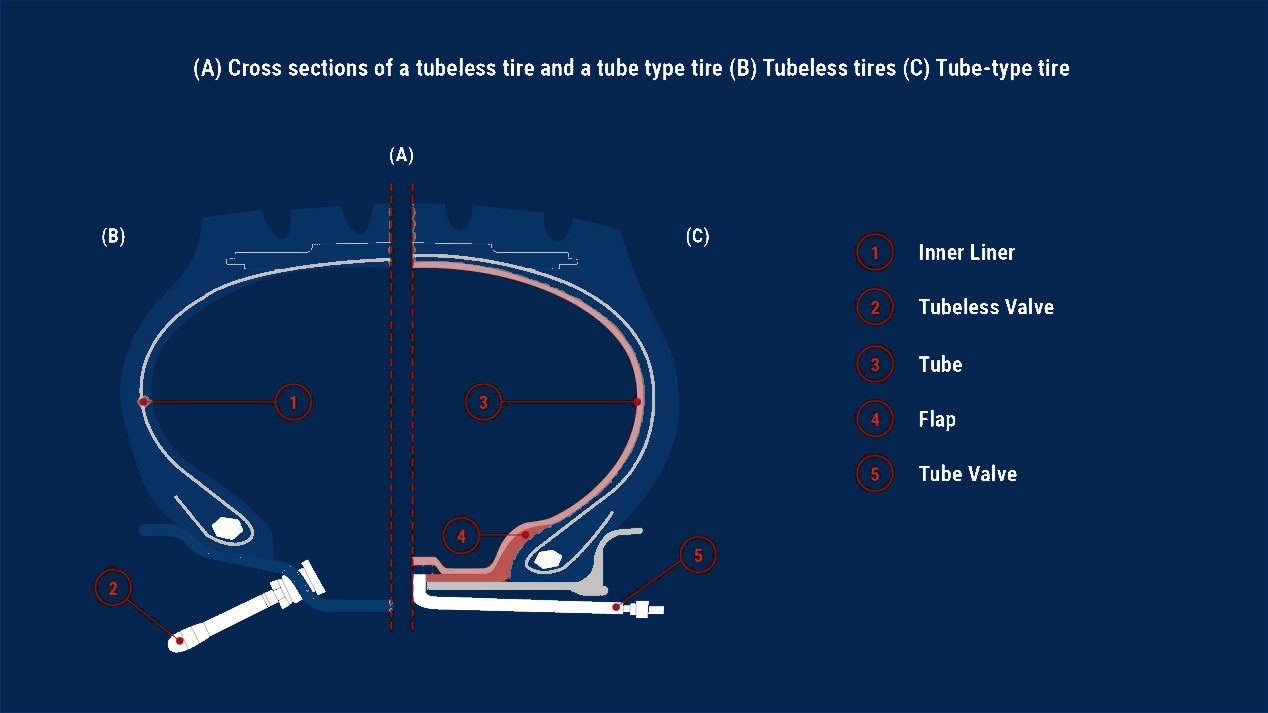

Tubeless Tires

A tubeless tire does not use a separate inner tube to contain air. Instead, an airtight inner liner on the inside of the tire helps maintain inflation pressure.

The casing forms the structural foundation of the tire.

Tire Casing

The casing is the foundation on which the rest of the tire is built. Its structural design influences how the tire carries load, manages inflation pressure, absorbs road impacts and responds to operating stresses.

For commercial tires, casing durability is especially important because fleets operate under substantial loads and varying road conditions. Consistent casing construction can also be an important consideration when evaluating the long-term value of a tire.

Key reinforcement and sealing components in tire construction.

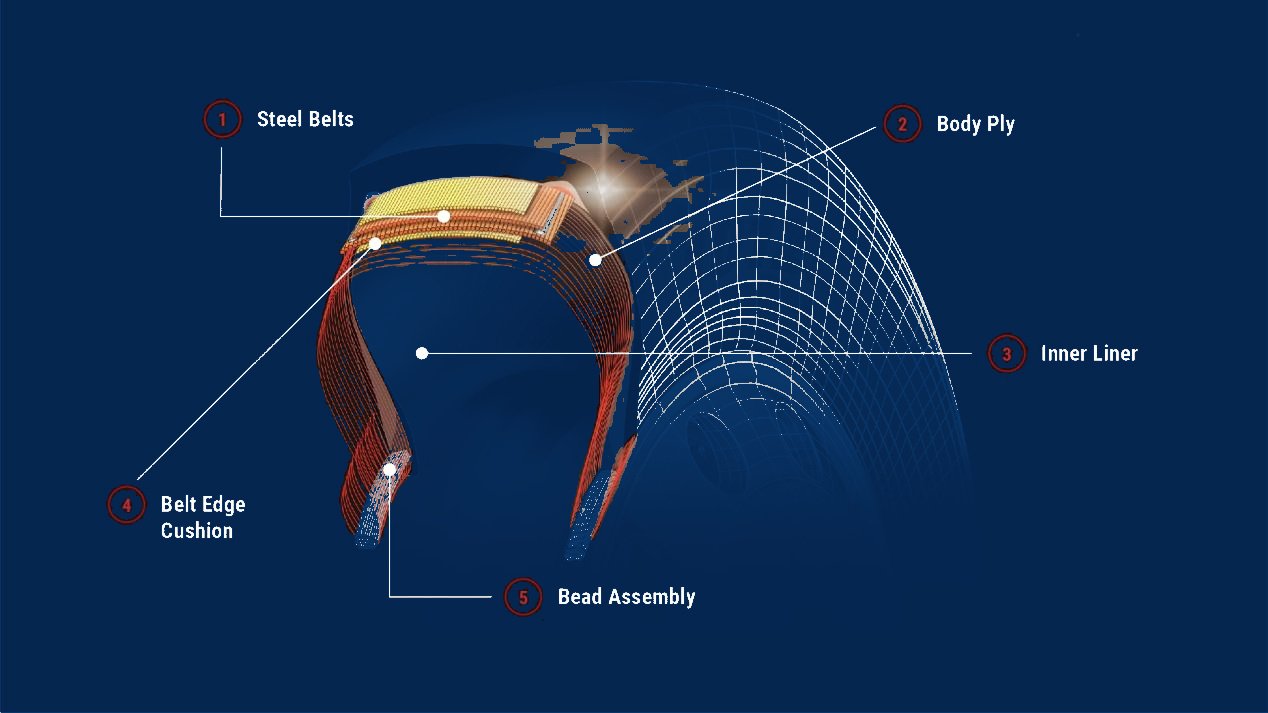

Tire Construction:Steel Belts, Body Ply and Bead Assembly

Steel Belts

Steel belts(1) increase tread-area stiffness, help limit distortion of the contact area and provide additional resistance to puncture and deformation.

Body Ply

A tire’s body ply (2) allows the tire to maintain inflation pressure, which allows the tire to carry a load and resist shock.

Inner Liner

The inner liner (3) minimizes air seepage to maintain air pressure inside the casing.

Belt Edge Cushion

The belt edge cushion (4) prevents separation of the belt edges and tread caused by a scissoring effect of the belts.

Bead Assembly

The bead assembly (5) reinforces the bead area to secure the tire against the rim. The fit must be tight enough to prevent air leakage

What Tire Construction Means for Fleet Performance

Tire performance is not determined by a single component. Tread design, belt package, carcass, profile, bead construction and inner liner all interact during service. For fleet operators and tire distributors, understanding this relationship makes it easier to match tire construction with vehicle type, load, road conditions and expected mileage.

When comparing commercial truck tires, it is useful to look beyond tread appearance and consider the complete construction. A balanced combination of structural strength, pressure retention, heat management and tread performance is central to reliable tire service.

Conclusion

A modern truck tire is a carefully engineered structure rather than simply a rubber tread wrapped around a wheel. The interaction between the tread, belts, carcass, sidewall, bead and inner liner determines how the tire responds to load, road conditions and operating temperature. Understanding these construction elements provides a clearer basis for evaluating commercial truck tire performance.
