TIRE STEEL CORD is the biggest user of rubber skeleton material. Surface of high-quality high-carbon steel cord is coated with brass and configured with fine steel wire strands or ropes for special purposes.Bekaert was the earliest inventor of steel cord。
As tire reinforce material,strand steel cord is mainly used for tires of passenger cars, light trucks tires, heavy trucks tires, OTR tires,construction machinery vehicles,airplane tires,rubber track. Radial tires with steel cord as its reinforcing material have many advantages: long service life, fast speed, puncture resistance, and fuel saving.
Stainless Steel cord not only can be tire raw materials but also can be used in conveyor belt produciton,steel breaker fabric for Conveyor Belt is a new material to improve belt tear resistance.
Off grade and B grade steel cord can be make brushes,steel rope,lift tire repair materials,steel fiber in concrete.

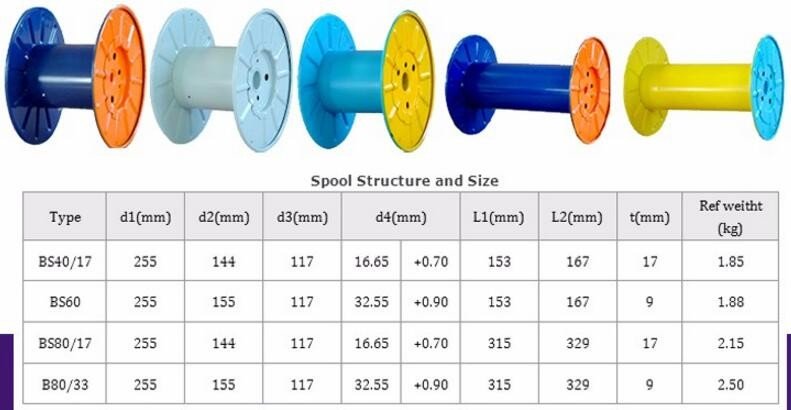

SPOOL SIZE:

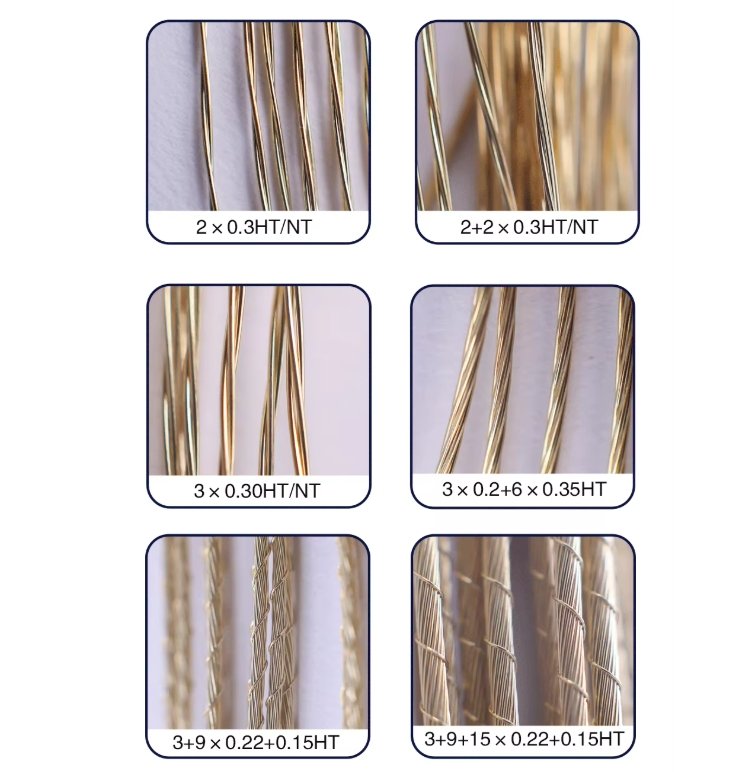

Specification of Steel Cord | |||||
construction | lay length | lay/winding direction | diameter | breaking force | linear density |
3+9+15*0.225HT | 6.3±0.315/12.5±0.625 18±0.9 | Z/Z/Z | 1.38±0.069 | ≥3120 | 8.67±0.43 |
3+9+15*0.225ST | 6.3±0.315/12.5±0.625 18±0.9 | Z/Z/Z | 1.38±0.069 | ≥3485 | 8.67±0.43 |
3+9+15*0.22+0.15 | 6.3±0.32/12.5±0.63 18±0.9/3.5±0.18 | S/S/Z/S | 1.62±0.08 | ≥2700 | 8.5±0.25 |
3+9+15*0.175+0.15 | 5±0.25/10±0.5 16±0.8/3.5±0.18 | S/S/Z/S | 1.34±0.07 | ≥1680 | 5.42±0.27 |
3+9*0.22 | 6.3±0.32/12.5±0.63 | S/S | 0.92±0.046 | ≥1185 | 3.65±0.182 |
3+9*0.22HT | 6.3±0.32/12.5±0.63 | S/S | 0.92±0.046 | ≥1360 | 3.65±0.182 |
3+9*0.22+0.15 | 6.3±0.32/12.5±0.63 3.5±0.18 | S/S/Z | 1.18±0.06 | ≥1185 | 3.85±0.18 |
3+9*0.22+0.15HT | 6.3±0.32/12.5±0.63 3.5±0.18 | S/S/Z | 1.18±0.06 | ≥1360 | 3.85±0.18 |
3*0.24/9*0.225HT | 14±0.7/14±0.7 | S/S | 0.94±0.05 | ≥1445 | 3.94±0.2 |
3*0.22/9*0.20HT | 12.5±0.63/12.5±0.63 | S/S | 0.88±0.04 | ≥1185 | 3.17±0.16 |
3*0.22/9*0.20+0.15HT | 12.5±0.63/12.5±0.63 5.0±0.25 | S/S/Z | 1.11±0.055 | ≥1185 | 3.33±0.166 |
3*0.24/9*0.225+0.15HT | 12.5±0.63/12.5±0.63 5.0±0.25 | S/S/Z | 1.17±0.06 | ≥1445 | 4.10±0.21 |
3*0.15+6*0.27HT | 9±0.45/10±0.5 | S/Z | 0.85±0.040 | ≥1000 | 3.17±0.158 |
3*0.20+6*0.35 | 10±0.5/18±0.9 | S/Z | 1.13±0.03 | ≥1550 | 5.34±0.28 |
3*0.20+6*0.35HT | 10±0.5/18±0.9 | S/Z | 1.13±0.03 | ≥1850 | 5.34±0.28 |
1*0.365+6*0.35HT | 18±0.9 | S | 1.08±0.05 | ≥1860 | 5.42±0.27 |
2+7*0.22HT | 6.3±0.315/12.5±0.63 | S/S | 0.83±0.041 | ≥1010 | 2.74±0.137 |
2+7*0.30ST | 8±0.4/16±0.8 | S/S | 1.19±0.06 | ≥2005 | 3.89±0.2 |
3*7*0.20HE | 3.9±0.19/6.3±0.31 | S/S | 1.34±0.08 | ≥1360 | 5.77±0.23 |
3*3*0.20HE | 3.0±0.15/6.0±0.3 | S/S | 0.92±0.06 | ≥715 | 2.42±0.12 |
3*4*0.22HE | 3.15±0.157/6.3±0.31 | S/S | 1.18±0.059 | ≥940 | 3.95±0.2 |
3+8*0.33HT | 10±0.5/18±0.9 | S/S | 1.36±0.07 | ≥2650 | 7.48±0.37 |
3+8*0.35HT | 10±0.5/20±1 | S/S | 1.44±0.072 | ≥2860 | 8.44±0.422 |
3+8*0.33ST | 10±0.5/20±1 | S/S | 1.34±0.07 | ≥2940 | 7.48±0.37 |
3+8*0.22HT | 6.3±0.315/12.5±0.625 | S/S | 0.9±0.04 | ≥1240 | 3.35±0.16 |
5*0.25NT | 10±0.5 | S | 0.67±0.03 | ≥660 | 1.95±0.1 |
5*0.38HT | 18±0.9 | S | 1.34±0.08 | ≥1505 | 4.51±0.225 |
5*0.35HT | 17±0.85 | S | 0.94±0.047 | ≥1310 | 3.82±0.19 |
5*0.38HI | 14±0.7 | S | 1.030±0.051 | ≥1185 | 3.89±0.19 |
5*0.35HI | 14±0.7 | S | 1.19±0.06 | ≥1130 | 4.63±0.23 |
2+2*0.35ST | ∞/18±0.9 | -/S | 0.94±0.08 | ≥1175 | 3.06±0.15 |
2+2*0.32ST | ∞/16±0.8 | -/S | 0.83±0.06 | ≥1000 | 2.57±0.3 |
2+2*0.25HT | ∞/14±0.7 | -/S | 0.65±0.03 | ≥570 | 1.55±0.08 |
2+2*0.28HT | ∞/16±0.8 | -/S | 0.74±0.04 | ≥680 | 1.95±0.1 |
2+2*0.30HT | ∞/16±0.8 | -/S | 0.78±0.04 | ≥810 | 2.23±0.11 |
2+2*0.35HT | ∞/16±0.8 | -/S | 0.94±0.05 | ≥1025 | 3.03±0.15 |
2+1*0.25HT | ∞/11±0.55 | -/S | 0.63±0.03 | ≥425 | 1.16±0.06 |
2+1*0.30HT | ∞/14±0.7 | -/S | 0.75±0.04 | ≥610 | 1.67±0.08 |
3*0.28ST | 14±0.7 | S | 0.60±0.03 | ≥575 | 1.46±0.1 |
3*0.30ST | 16±0.8 | S | 0.64±0.03 | ≥670 | 1.67±0.1 |
3*0.32NT | 12.5±1 | S | 0.689±0.0215 | ≥550 | 1.76±0.088 |
3*0.38ST | 20±1 | S | 0.8±0.03 | ≥980 | 2.67±0.08 |
3*0.30HT | 16±0.8 | S | 0.65±0.03 | ≥610 | 1.68±0.08 |
3*0.27HT TR | 14±0.7 | S | 0.58±0.03 | ≥470 | 1.35±0.07 |
3*0.28HT TR | 16±0.8 | S | 0.6±0.03 | ≥480 | 1.46±0.07 |
2*0.30HT | 14±0.7 | S | 0.6±0.03 | ≥405 | 1.12±0.06 |
2*0.30ST | 14±0.7 | S | 0.6±0.03 | ≥445 | 1.12±0.06 |
2*0.30ST | 16±0.8 | S | 0.6±0.03 | ≥445 | 1.12±0.06 |
